PythonとwxPythonのGUIビルダwxFormBuilderを使って、テストアプリを作ってみました。
なぜ、wxPython なのか。
wxWidgets を使っていますので、Windows、macOS、Linux で動かすことが出来るからです。
【環境】
- Python 2.7.8
- wxPython 2.8
- wxFormbuilder 3.4.0-beta

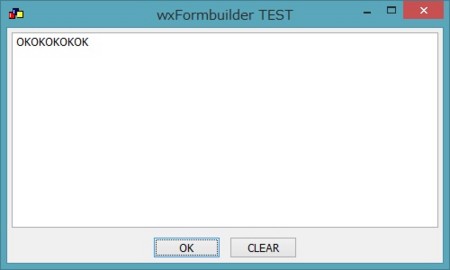

「OK」ボタンを押すとテキストボックスに「OK」の文字が追加され、「CLEAR」ボタンを押すとテキストボックスをクリアします。
wxHaskellのときはXRCファイルを読み込んで、イベントは自分で設定していましたが、今回はwxFormbuilderでイベントを設定しました。
- イベントの設定方法
- Designerの「OK」のボタンを選択->EventのOnButtonClick欄に「OnButtunOK」。
- Designerの「CLEAR」のボタンを選択->EventのOnButtonClick欄に「OnButtunCLEAR」。
- wxTest.fbp : wxFormbuilder 自身の保存ファイル
<?xml version="1.0" encoding="UTF-8" standalone="yes" ?> <wxFormBuilder_Project> <FileVersion major="1" minor="11" /> <object class="Project" expanded="1"> <property name="class_decoration"></property> <property name="code_generation">Python</property> <property name="disconnect_events">1</property> <property name="disconnect_mode">source_name</property> <property name="disconnect_php_events">0</property> <property name="disconnect_python_events">0</property> <property name="embedded_files_path">res</property> <property name="encoding">UTF-8</property> <property name="event_generation">connect</property> <property name="file">pytest</property> <property name="first_id">1000</property> <property name="help_provider">none</property> <property name="internationalize">0</property> <property name="name">pytest</property> <property name="namespace"></property> <property name="path">.</property> <property name="precompiled_header"></property> <property name="relative_path">1</property> <property name="skip_lua_events">1</property> <property name="skip_php_events">1</property> <property name="skip_python_events">1</property> <property name="ui_table">UI</property> <property name="use_enum">0</property> <property name="use_microsoft_bom">0</property> <object class="Frame" expanded="1"> <property name="aui_managed">0</property> <property name="aui_manager_style">wxAUI_MGR_DEFAULT</property> <property name="bg"></property> <property name="center">wxBOTH</property> <property name="context_help"></property> <property name="context_menu">1</property> <property name="enabled">1</property> <property name="event_handler">impl_virtual</property> <property name="extra_style"></property> <property name="fg"></property> <property name="font"></property> <property name="hidden">0</property> <property name="id">wxID_ANY</property> <property name="maximum_size"></property> <property name="minimum_size"></property> <property name="name">fMain</property> <property name="pos"></property> <property name="size">500,300</property> <property name="style">wxDEFAULT_FRAME_STYLE</property> <property name="subclass"></property> <property name="title">wxFormbuilder TEST</property> <property name="tooltip"></property> <property name="window_extra_style"></property> <property name="window_name"></property> <property name="window_style">wxTAB_TRAVERSAL</property> <property name="xrc_skip_sizer">1</property> <event name="OnActivate"></event> <event name="OnActivateApp"></event> <event name="OnAuiFindManager"></event> <event name="OnAuiPaneButton"></event> <event name="OnAuiPaneClose"></event> <event name="OnAuiPaneMaximize"></event> <event name="OnAuiPaneRestore"></event> <event name="OnAuiRender"></event> <event name="OnChar"></event> <event name="OnClose"></event> <event name="OnEnterWindow"></event> <event name="OnEraseBackground"></event> <event name="OnHibernate"></event> <event name="OnIconize"></event> <event name="OnIdle"></event> <event name="OnKeyDown"></event> <event name="OnKeyUp"></event> <event name="OnKillFocus"></event> <event name="OnLeaveWindow"></event> <event name="OnLeftDClick"></event> <event name="OnLeftDown"></event> <event name="OnLeftUp"></event> <event name="OnMiddleDClick"></event> <event name="OnMiddleDown"></event> <event name="OnMiddleUp"></event> <event name="OnMotion"></event> <event name="OnMouseEvents"></event> <event name="OnMouseWheel"></event> <event name="OnPaint"></event> <event name="OnRightDClick"></event> <event name="OnRightDown"></event> <event name="OnRightUp"></event> <event name="OnSetFocus"></event> <event name="OnSize"></event> <event name="OnUpdateUI"></event> <object class="wxBoxSizer" expanded="1"> <property name="minimum_size"></property> <property name="name">bSizer1</property> <property name="orient">wxVERTICAL</property> <property name="permission">none</property> <object class="sizeritem" expanded="1"> <property name="border">5</property> <property name="flag">wxEXPAND</property> <property name="proportion">1</property> <object class="wxPanel" expanded="1"> <property name="BottomDockable">1</property> <property name="LeftDockable">1</property> <property name="RightDockable">1</property> <property name="TopDockable">1</property> <property name="aui_layer"></property> <property name="aui_name"></property> <property name="aui_position"></property> <property name="aui_row"></property> <property name="best_size"></property> <property name="bg"></property> <property name="caption"></property> <property name="caption_visible">1</property> <property name="center_pane">0</property> <property name="close_button">1</property> <property name="context_help"></property> <property name="context_menu">1</property> <property name="default_pane">0</property> <property name="dock">Dock</property> <property name="dock_fixed">0</property> <property name="docking">Left</property> <property name="enabled">1</property> <property name="fg"></property> <property name="floatable">1</property> <property name="font"></property> <property name="gripper">0</property> <property name="hidden">0</property> <property name="id">wxID_ANY</property> <property name="max_size"></property> <property name="maximize_button">0</property> <property name="maximum_size"></property> <property name="min_size"></property> <property name="minimize_button">0</property> <property name="minimum_size"></property> <property name="moveable">1</property> <property name="name">m_panel1</property> <property name="pane_border">1</property> <property name="pane_position"></property> <property name="pane_size"></property> <property name="permission">protected</property> <property name="pin_button">1</property> <property name="pos"></property> <property name="resize">Resizable</property> <property name="show">1</property> <property name="size"></property> <property name="subclass"></property> <property name="toolbar_pane">0</property> <property name="tooltip"></property> <property name="window_extra_style"></property> <property name="window_name"></property> <property name="window_style">wxTAB_TRAVERSAL</property> <event name="OnChar"></event> <event name="OnEnterWindow"></event> <event name="OnEraseBackground"></event> <event name="OnKeyDown"></event> <event name="OnKeyUp"></event> <event name="OnKillFocus"></event> <event name="OnLeaveWindow"></event> <event name="OnLeftDClick"></event> <event name="OnLeftDown"></event> <event name="OnLeftUp"></event> <event name="OnMiddleDClick"></event> <event name="OnMiddleDown"></event> <event name="OnMiddleUp"></event> <event name="OnMotion"></event> <event name="OnMouseEvents"></event> <event name="OnMouseWheel"></event> <event name="OnPaint"></event> <event name="OnRightDClick"></event> <event name="OnRightDown"></event> <event name="OnRightUp"></event> <event name="OnSetFocus"></event> <event name="OnSize"></event> <event name="OnUpdateUI"></event> <object class="wxBoxSizer" expanded="1"> <property name="minimum_size"></property> <property name="name">bSizer2</property> <property name="orient">wxVERTICAL</property> <property name="permission">none</property> <object class="sizeritem" expanded="1"> <property name="border">5</property> <property name="flag">wxALL|wxEXPAND</property> <property name="proportion">1</property> <object class="wxTextCtrl" expanded="1"> <property name="BottomDockable">1</property> <property name="LeftDockable">1</property> <property name="RightDockable">1</property> <property name="TopDockable">1</property> <property name="aui_layer"></property> <property name="aui_name"></property> <property name="aui_position"></property> <property name="aui_row"></property> <property name="best_size"></property> <property name="bg"></property> <property name="caption"></property> <property name="caption_visible">1</property> <property name="center_pane">0</property> <property name="close_button">1</property> <property name="context_help"></property> <property name="context_menu">1</property> <property name="default_pane">0</property> <property name="dock">Dock</property> <property name="dock_fixed">0</property> <property name="docking">Left</property> <property name="enabled">1</property> <property name="fg"></property> <property name="floatable">1</property> <property name="font"></property> <property name="gripper">0</property> <property name="hidden">0</property> <property name="id">wxID_ANY</property> <property name="max_size"></property> <property name="maximize_button">0</property> <property name="maximum_size"></property> <property name="maxlength"></property> <property name="min_size"></property> <property name="minimize_button">0</property> <property name="minimum_size"></property> <property name="moveable">1</property> <property name="name">m_textCtrl1</property> <property name="pane_border">1</property> <property name="pane_position"></property> <property name="pane_size"></property> <property name="permission">protected</property> <property name="pin_button">1</property> <property name="pos"></property> <property name="resize">Resizable</property> <property name="show">1</property> <property name="size"></property> <property name="style"></property> <property name="subclass"></property> <property name="toolbar_pane">0</property> <property name="tooltip"></property> <property name="validator_data_type"></property> <property name="validator_style">wxFILTER_NONE</property> <property name="validator_type">wxDefaultValidator</property> <property name="validator_variable"></property> <property name="value"></property> <property name="window_extra_style"></property> <property name="window_name"></property> <property name="window_style"></property> <event name="OnChar"></event> <event name="OnEnterWindow"></event> <event name="OnEraseBackground"></event> <event name="OnKeyDown"></event> <event name="OnKeyUp"></event> <event name="OnKillFocus"></event> <event name="OnLeaveWindow"></event> <event name="OnLeftDClick"></event> <event name="OnLeftDown"></event> <event name="OnLeftUp"></event> <event name="OnMiddleDClick"></event> <event name="OnMiddleDown"></event> <event name="OnMiddleUp"></event> <event name="OnMotion"></event> <event name="OnMouseEvents"></event> <event name="OnMouseWheel"></event> <event name="OnPaint"></event> <event name="OnRightDClick"></event> <event name="OnRightDown"></event> <event name="OnRightUp"></event> <event name="OnSetFocus"></event> <event name="OnSize"></event> <event name="OnText"></event> <event name="OnTextEnter"></event> <event name="OnTextMaxLen"></event> <event name="OnTextURL"></event> <event name="OnUpdateUI"></event> </object> </object> <object class="sizeritem" expanded="1"> <property name="border">5</property> <property name="flag">wxALIGN_CENTER_HORIZONTAL</property> <property name="proportion">0</property> <object class="wxBoxSizer" expanded="1"> <property name="minimum_size"></property> <property name="name">bSizer3</property> <property name="orient">wxHORIZONTAL</property> <property name="permission">none</property> <object class="sizeritem" expanded="1"> <property name="border">5</property> <property name="flag"></property> <property name="proportion">0</property> <object class="wxFlexGridSizer" expanded="1"> <property name="cols">2</property> <property name="flexible_direction">wxBOTH</property> <property name="growablecols"></property> <property name="growablerows"></property> <property name="hgap">0</property> <property name="minimum_size"></property> <property name="name">fgSizer1</property> <property name="non_flexible_grow_mode">wxFLEX_GROWMODE_SPECIFIED</property> <property name="permission">none</property> <property name="rows">1</property> <property name="vgap">0</property> <object class="sizeritem" expanded="1"> <property name="border">5</property> <property name="flag">wxALL|wxALIGN_CENTER_VERTICAL</property> <property name="proportion">0</property> <object class="wxButton" expanded="1"> <property name="BottomDockable">1</property> <property name="LeftDockable">1</property> <property name="RightDockable">1</property> <property name="TopDockable">1</property> <property name="aui_layer"></property> <property name="aui_name"></property> <property name="aui_position"></property> <property name="aui_row"></property> <property name="best_size"></property> <property name="bg"></property> <property name="caption"></property> <property name="caption_visible">1</property> <property name="center_pane">0</property> <property name="close_button">1</property> <property name="context_help"></property> <property name="context_menu">1</property> <property name="default">0</property> <property name="default_pane">0</property> <property name="dock">Dock</property> <property name="dock_fixed">0</property> <property name="docking">Left</property> <property name="enabled">1</property> <property name="fg"></property> <property name="floatable">1</property> <property name="font"></property> <property name="gripper">0</property> <property name="hidden">0</property> <property name="id">wxID_ANY</property> <property name="label">OK</property> <property name="max_size"></property> <property name="maximize_button">0</property> <property name="maximum_size"></property> <property name="min_size"></property> <property name="minimize_button">0</property> <property name="minimum_size"></property> <property name="moveable">1</property> <property name="name">m_button1</property> <property name="pane_border">1</property> <property name="pane_position"></property> <property name="pane_size"></property> <property name="permission">protected</property> <property name="pin_button">1</property> <property name="pos"></property> <property name="resize">Resizable</property> <property name="show">1</property> <property name="size"></property> <property name="style"></property> <property name="subclass"></property> <property name="toolbar_pane">0</property> <property name="tooltip"></property> <property name="validator_data_type"></property> <property name="validator_style">wxFILTER_NONE</property> <property name="validator_type">wxDefaultValidator</property> <property name="validator_variable"></property> <property name="window_extra_style"></property> <property name="window_name"></property> <property name="window_style"></property> <event name="OnButtonClick">OnButtunOK</event> <event name="OnChar"></event> <event name="OnEnterWindow"></event> <event name="OnEraseBackground"></event> <event name="OnKeyDown"></event> <event name="OnKeyUp"></event> <event name="OnKillFocus"></event> <event name="OnLeaveWindow"></event> <event name="OnLeftDClick"></event> <event name="OnLeftDown"></event> <event name="OnLeftUp"></event> <event name="OnMiddleDClick"></event> <event name="OnMiddleDown"></event> <event name="OnMiddleUp"></event> <event name="OnMotion"></event> <event name="OnMouseEvents"></event> <event name="OnMouseWheel"></event> <event name="OnPaint"></event> <event name="OnRightDClick"></event> <event name="OnRightDown"></event> <event name="OnRightUp"></event> <event name="OnSetFocus"></event> <event name="OnSize"></event> <event name="OnUpdateUI"></event> </object> </object> <object class="sizeritem" expanded="1"> <property name="border">5</property> <property name="flag">wxALL|wxALIGN_CENTER_VERTICAL</property> <property name="proportion">0</property> <object class="wxButton" expanded="1"> <property name="BottomDockable">1</property> <property name="LeftDockable">1</property> <property name="RightDockable">1</property> <property name="TopDockable">1</property> <property name="aui_layer"></property> <property name="aui_name"></property> <property name="aui_position"></property> <property name="aui_row"></property> <property name="best_size"></property> <property name="bg"></property> <property name="caption"></property> <property name="caption_visible">1</property> <property name="center_pane">0</property> <property name="close_button">1</property> <property name="context_help"></property> <property name="context_menu">1</property> <property name="default">0</property> <property name="default_pane">0</property> <property name="dock">Dock</property> <property name="dock_fixed">0</property> <property name="docking">Left</property> <property name="enabled">1</property> <property name="fg"></property> <property name="floatable">1</property> <property name="font"></property> <property name="gripper">0</property> <property name="hidden">0</property> <property name="id">wxID_ANY</property> <property name="label">CLEAR</property> <property name="max_size"></property> <property name="maximize_button">0</property> <property name="maximum_size"></property> <property name="min_size"></property> <property name="minimize_button">0</property> <property name="minimum_size"></property> <property name="moveable">1</property> <property name="name">m_button2</property> <property name="pane_border">1</property> <property name="pane_position"></property> <property name="pane_size"></property> <property name="permission">protected</property> <property name="pin_button">1</property> <property name="pos"></property> <property name="resize">Resizable</property> <property name="show">1</property> <property name="size"></property> <property name="style"></property> <property name="subclass"></property> <property name="toolbar_pane">0</property> <property name="tooltip"></property> <property name="validator_data_type"></property> <property name="validator_style">wxFILTER_NONE</property> <property name="validator_type">wxDefaultValidator</property> <property name="validator_variable"></property> <property name="window_extra_style"></property> <property name="window_name"></property> <property name="window_style"></property> <event name="OnButtonClick">OnButtunCLEAR</event> <event name="OnChar"></event> <event name="OnEnterWindow"></event> <event name="OnEraseBackground"></event> <event name="OnKeyDown"></event> <event name="OnKeyUp"></event> <event name="OnKillFocus"></event> <event name="OnLeaveWindow"></event> <event name="OnLeftDClick"></event> <event name="OnLeftDown"></event> <event name="OnLeftUp"></event> <event name="OnMiddleDClick"></event> <event name="OnMiddleDown"></event> <event name="OnMiddleUp"></event> <event name="OnMotion"></event> <event name="OnMouseEvents"></event> <event name="OnMouseWheel"></event> <event name="OnPaint"></event> <event name="OnRightDClick"></event> <event name="OnRightDown"></event> <event name="OnRightUp"></event> <event name="OnSetFocus"></event> <event name="OnSize"></event> <event name="OnUpdateUI"></event> </object> </object> </object> </object> </object> </object> </object> </object> </object> </object> </object> </object> </wxFormBuilder_Project>
- pytest.py : F8(File-> Generate Code) でwxFormbuilderが吐き出したファイル
Project の Properties の file で設定した名前になる。設定しないと noname.py
# -*- coding: utf-8 -*- ########################################################################### ## Python code generated with wxFormBuilder (version May 15 2013) ## http://www.wxformbuilder.org/ ## ## PLEASE DO "NOT" EDIT THIS FILE! ########################################################################### import wx import wx.xrc ########################################################################### ## Class fMain ########################################################################### class fMain ( wx.Frame ): def __init__( self, parent ): wx.Frame.__init__ ( self, parent, id = wx.ID_ANY, title = u"wxFormbuilder TEST", pos = wx.DefaultPosition, size = wx.Size( 500,300 ), style = wx.DEFAULT_FRAME_STYLE|wx.TAB_TRAVERSAL ) self.SetSizeHintsSz( wx.DefaultSize, wx.DefaultSize ) bSizer1 = wx.BoxSizer( wx.VERTICAL ) self.m_panel1 = wx.Panel( self, wx.ID_ANY, wx.DefaultPosition, wx.DefaultSize, wx.TAB_TRAVERSAL ) bSizer2 = wx.BoxSizer( wx.VERTICAL ) self.m_textCtrl1 = wx.TextCtrl( self.m_panel1, wx.ID_ANY, wx.EmptyString, wx.DefaultPosition, wx.DefaultSize, 0 ) bSizer2.Add( self.m_textCtrl1, 1, wx.ALL|wx.EXPAND, 5 ) bSizer3 = wx.BoxSizer( wx.HORIZONTAL ) fgSizer1 = wx.FlexGridSizer( 1, 2, 0, 0 ) fgSizer1.SetFlexibleDirection( wx.BOTH ) fgSizer1.SetNonFlexibleGrowMode( wx.FLEX_GROWMODE_SPECIFIED ) self.m_button1 = wx.Button( self.m_panel1, wx.ID_ANY, u"OK", wx.DefaultPosition, wx.DefaultSize, 0 ) fgSizer1.Add( self.m_button1, 0, wx.ALL|wx.ALIGN_CENTER_VERTICAL, 5 ) self.m_button2 = wx.Button( self.m_panel1, wx.ID_ANY, u"CLEAR", wx.DefaultPosition, wx.DefaultSize, 0 ) fgSizer1.Add( self.m_button2, 0, wx.ALL|wx.ALIGN_CENTER_VERTICAL, 5 ) bSizer3.Add( fgSizer1, 0, 0, 5 ) bSizer2.Add( bSizer3, 0, wx.ALIGN_CENTER_HORIZONTAL, 5 ) self.m_panel1.SetSizer( bSizer2 ) self.m_panel1.Layout() bSizer2.Fit( self.m_panel1 ) bSizer1.Add( self.m_panel1, 1, wx.EXPAND, 5 ) self.SetSizer( bSizer1 ) self.Layout() self.Centre( wx.BOTH ) # Connect Events # イベントが追加されています。 self.m_button1.Bind( wx.EVT_BUTTON, self.OnButtunOK ) self.m_button2.Bind( wx.EVT_BUTTON, self.OnButtunCLEAR ) def __del__( self ): pass # Virtual event handlers, overide them in your derived class def OnButtunOK( self, event ): event.Skip() def OnButtunCLEAR( self, event ): event.Skip()
Tools の「Generate Inherited Class F6」をクリックすると継承ファイルを作ります。
- pytestfMain.py : 継承してwxFormBuilderが作成したファイル。
"""Subclass of fMain, which is generated by wxFormBuilder.""" import wx import pytest # Implementing fMain class pytestfMain( pytest.fMain ): def __init__( self, parent ): pytest.fMain.__init__( self, parent ) # Handlers for fMain events. def OnButtunOK( self, event ): self.m_textCtrl1.AppendText('OK') # これを書き加えた def OnButtunCLEAR( self, event ): self.m_textCtrl1.Clear() # これを書き加えた
- pytestApp.py : 新たに作ったメイン
import wx from pytestfMain import pytestfMain as fMain app = wx.App() frame = fMain(None) # アイコンを表示するようにしました。 frame.SetIcon(wx.Icon("wxwin.ico",wx.BITMAP_TYPE_ICO)) frame.Show() app.SetTopWindow(frame) app.MainLoop()
wxFormbuilderが吐き出すソースはTABによるインデントなのでスペースでインデントするとエラーになります。テキストエディダの置換でスペースに変換しましょう。
